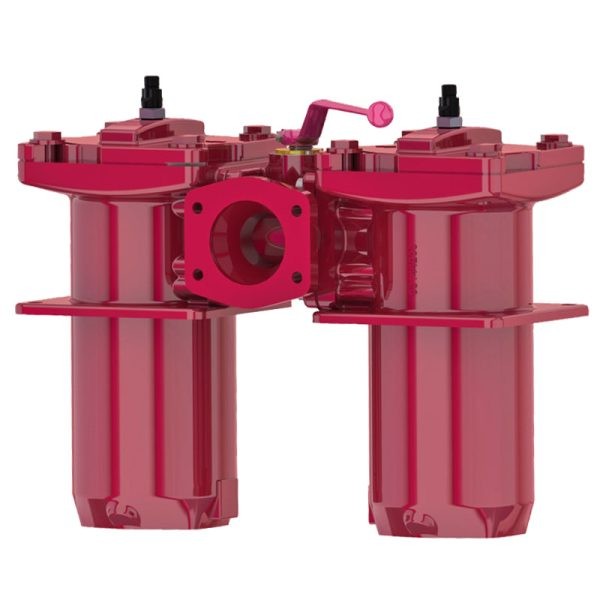

HYDAC In-Tank/Inline Duplex Industrial Filter (RFD Series 360 PSI)

Model Differences Overview

Part Number Reference

Part Number	Model Code Description	Flow	Operating Pressure (Max)	Filter Rating	Bypass Valve	Seal Material
303382	RFD330DALXXA1.1/16V (2″ SAE/2″ NPT)	87 gpm / 330 L/min	25 bar / 360 psi	N/A	B3	FKM
308601	RFD330DAGXXA1.0/0 (G 2″)	87 gpm / 330 L/min	25 bar / 360 psi	N/A	B3	NBR
311699	RFD950DAOXXA1.1/16 (4″ SAE/3 1/2″ SAE)	251 gpm / 950 L/min	25 bar / 360 psi	N/A	B3	NBR
311718	RFD950DAOXXA1.1 (SAE DN102/SAE DN89)	251 gpm / 950 L/min	25 bar / 360 psi	N/A	B3	NBR
311802	RFD330DALXXA1.1/16 (2″ SAE/2″ NPT)	87 gpm / 330 L/min	25 bar / 360 psi	N/A	B3	NBR
312006	RFD660DANXXA1.1 (SAE DN76/G 3″)	174 gpm / 660 L/min	25 bar / 360 psi	N/A	B3	NBR
312288	RFD1300DAPXXA1.1 (SAE DN102)	343 gpm / 1300 L/min	25 bar / 360 psi	N/A	B3	NBR
312431	RFD330DALXXA1.0 (SAE DN51/G 2″)	87 gpm / 330 L/min	25 bar / 360 psi	N/A	B3	NBR
314402	RFD660DANXXA1.1/16 (3″ SAE/3″ NPT)	174 gpm / 660 L/min	25 bar / 360 psi	N/A	B3	NBR
317646	RFD660DANXXA1.1/16V (3″ SAE/3″ NPT)	174 gpm / 660 L/min	25 bar / 360 psi	N/A	B3	FKM
318593	RFD950DAOXXA1.1/16V (4″ SAE/3 1/2″ SAE)	251 gpm / 950 L/min	25 bar / 360 psi	N/A	B3	FKM
1251681	RFD ON 950DAP3A1.1	251 gpm / 950 L/min	25 bar / 360 psi	3 µm	B3	NBR
1251794	RFD1300DAPXXA1.1/V	343 gpm / 1300 L/min	25 bar / 360 psi	N/A	B3	FKM
1253414	RFD330DALXXA1.0/-V	87 gpm / 330 L/min	25 bar / 360 psi	N/A	B3	FKM
1261891	RFD ON 660DAN10D1.1/-V-L24	174 gpm / 660 L/min	25 bar / 360 psi	10 µm	B3	FKM
1263960	RFD950DAOXXA1.1/V	251 gpm / 950 L/min	25 bar / 360 psi	N/A	B3	FKM
1271112	RFD60DACXXA1.0 (G 3/4″)	15 gpm / 60 L/min
