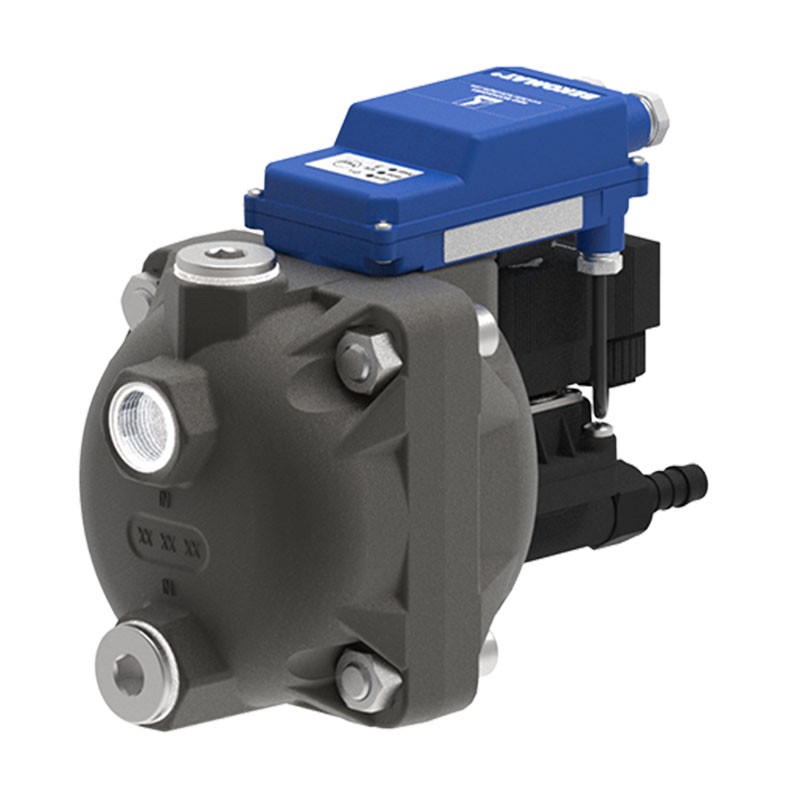

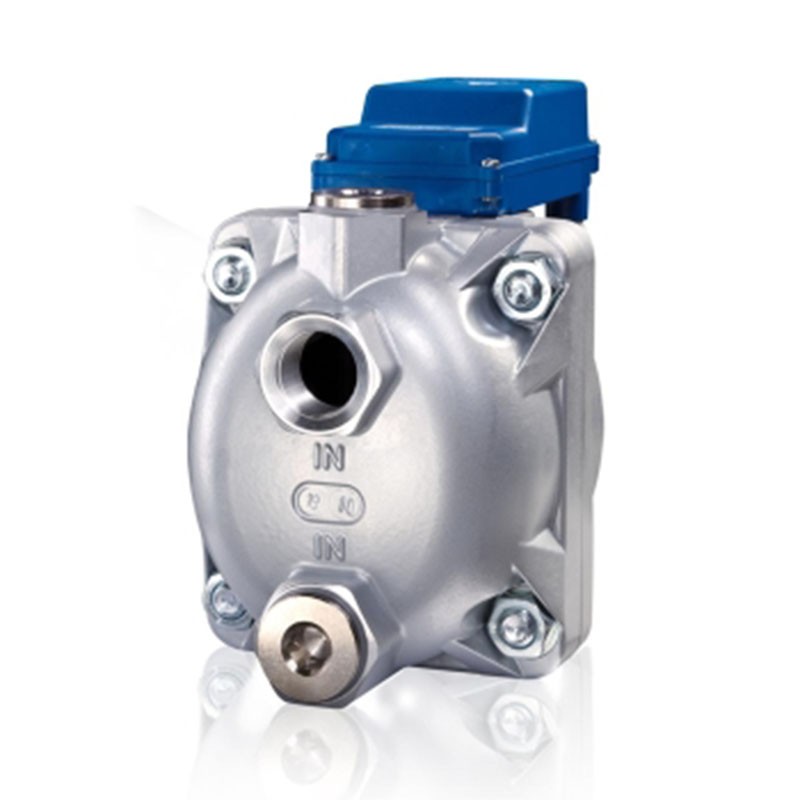

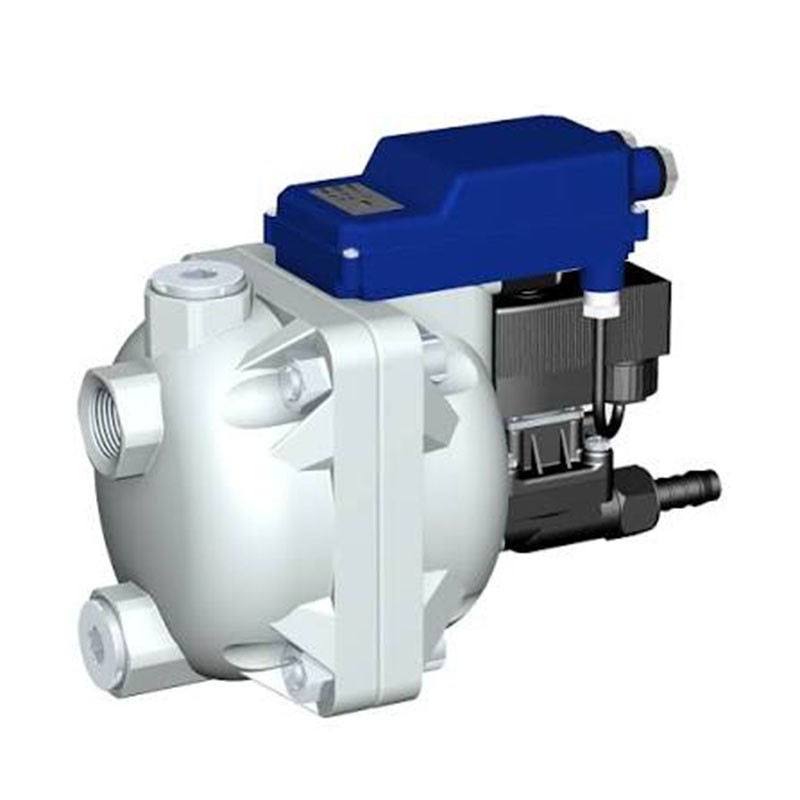

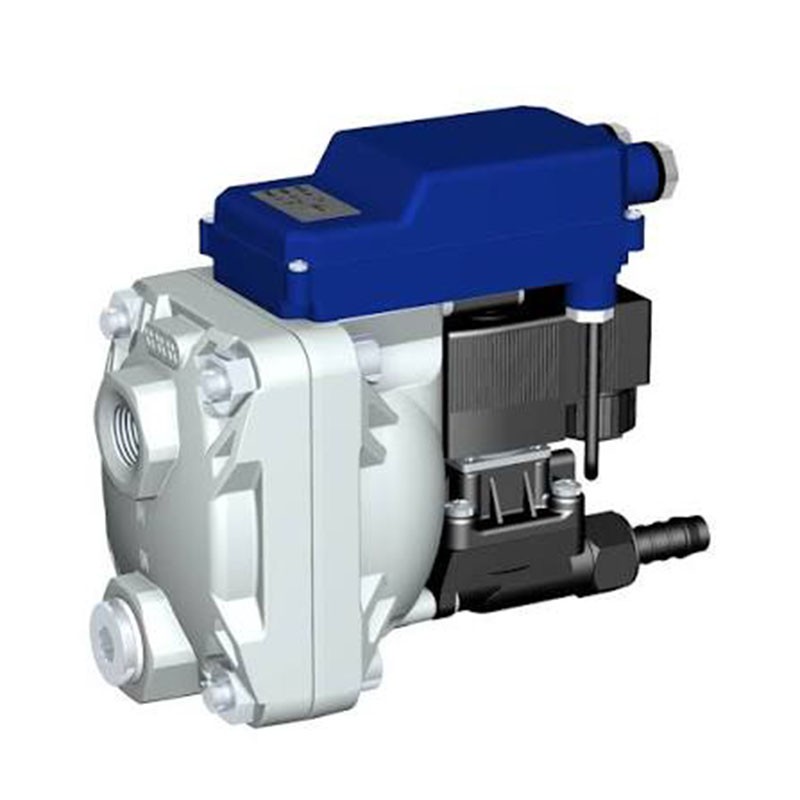

BEKO BEKOMAT 14 / 14 CO / PN25 Zero Air Loss Electronically Level

Standard (14): Robust aluminum body for standard oil-contaminated condensate.
CO Version (14 CO): Hard-coated, bead-blasted aluminum housing designed to withstand oil-free, aggressive, and highly acidic condensate.
PN25 Version: High-pressure construction built for systems running safely up to 25 bar (g).

The BEKOMAT® 14 series represents the global gold standard for commercial-grade, zero-air-loss electronically level-controlled condensate drains. Utilizing integrated capacitive level sensors, it intelligently tracks condensate volume and evacuates fluid only when full—completely eliminating the costly compressed air leakage associated with traditional timed solenoid valves. Widely utilized on heavy-duty compressors, aftercoolers, air receivers, refrigeration dryers, and multi-stage filters, it is the premier component for maximizing energy efficiency in pneumatic networks.

Technical Specifications Table

Specification Details	BEKOMAT 14 (Standard)	BEKOMAT 14 CO (Hard-Coated)	BEKOMAT 14 CO PN 25 (High Pressure)
Max. Compressor Capacity	150 m³/min (5300 scfm)	130 m³/min (4600 scfm)	90 m³/min (3180 scfm)
Max. Dryer Capacity	300 m³/min (10600 scfm)	260 m³/min (9200 scfm)	180 m³/min (6360 scfm)
Max. Filter Capacity	1500 m³/min (53000 scfm)	1300 m³/min (46000 scfm)	900 m³/min (31800 scfm)
Operating Pressure Range	0.8 … 16 bar (g) / 12-232 psig	0.8 … 16 bar (g) / 12-232 psig	1.2 … 25 bar (g) / 18-362 psig
Housing Material	Premium Die-cast Aluminum	Aluminum, Hard-coated & Sandblasted	Aluminum, Hard-coated & Sandblasted
Valve Diaphragm	FKM (Viton® Standard)	FKM (Viton® Standard)	FKM (Viton® Standard)
Condensate Inlet Connection	3 x G ¾ (Inside / Female)	3 x G ¾ (Inside / Female)	3 x G ¾ (Inside / Female)
Condensate Discharge Outlet	1 x G ½ (Male) with hose connector	1 x G ⅜ (Inside / Female)	1 x G ⅜ (Inside / Female)
Operating Ambient Temp.	+1 °C … +60 °C (34 °F … 140 °F)	+1 °C … +60 °C (34 °F … 140 °F)	+1 °C … +60 °C (34 °F … 140 °F)
Standard Options Voltage	230VAC / 115VAC / 24VDC (±10%)	230VAC / 115VAC / 24VDC (±10%)	230VAC / 115VAC / 24VDC (±10%)
Enclosure Rating / Power	IP 65 / P < 8.0 W (VA)	IP 65 / P < 8.0 W (VA)	IP 65 / P < 8.0 W (VA)
